简介

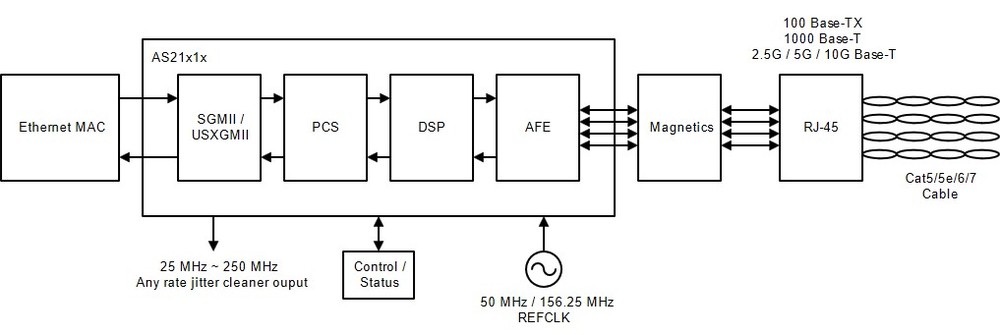

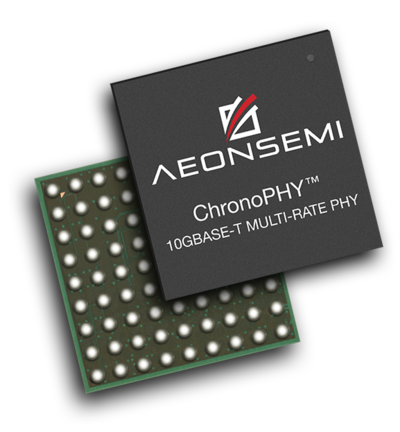

AS21x10x属于益昂ChronoPHY?系列的高性能万兆以太网芯片，其中AS21010P是一款多速率单端口物理层收发器PHY芯片，支持10GBASE-T、5GBASE-T、2.5GBASE-T、1000BASE-T和100BASE-TX 。
ChronoPHY?系列产品采用多千兆以太网PHY，通过创新、先进的时序架构实现超远距离覆盖和超低延迟，满足无线接入点、宽带接入和数据中心等应用中的现代网络需求 。
产品特性
? 10GBase-T, 5GBase-T, 2.5GBase-T single port
? IEEE802.3an/802.3bz/802.3ab/802.3u Compliant
? Extended cable reach with CAT 5e, 6 or 6A cable for 5GBASE-T, 2.5BASE-T
? Energy Efficient Ethernet (EEE)
? Flexible reference clock frequency of 50 MHz or 156.25 MHz
? Jumbo Packet Support with Auto-Negotiation and Extended Next Page capability (XNP)
? Auto MDI/MDIX, pair swap/priority/skew correction
? Flexible SERDES interface with support for XFI, SGMII/5000BASE-X/2500Base-X/USXGMII
? Wake-on-LAN Magic packet detection
? 1.8V signaling for MMD access
? Advanced cable diagnostics with on-chip high resolution cable analyzer
? Self-loopback diagnostic capability
? IEEE fast retrain and link monitoring
? Industrial temperature range
? 100m+ with CAT6, 6A or 7 cable for 10GBASE-T
? 封装BGA 7x7mm 0.8mm
ChronoPHY产品列表
物料号 | 速率 | 规格 | 封装 |
AS21011J | 10Gbps / 5Gbps / 2.5Gbps / 1Gbps / 100 Mbps | IEEE1588v2, Integrated SyncE jitter filter PLL, Any fractional frequency SyncE output clock from 25MHz to 250MHz | 11x11mm BGA |
AS21010J | 10Gbps / 5Gbps / 2.5Gbps / 1Gbps / 100 Mbps | IEEE1588v2, Integrated SyncE jitter filter PLL, Any fractional frequency SyncE output clock from 25MHz to 250MHz | 7x7mm BGA |
AS21010P | 10Gbps / 5Gbps / 2.5Gbps / 1Gbps / 100 Mbps | IEEE1588v2 | 7x7mm BGA |
AS21510P | 5Gbps / 2.5Gbps / 1Gbps / 100 Mbps | IEEE1588v2 | 7x7mm BGA |
AS21210P | 2.5Gbps / 1Gbps / 100 Mbps | IEEE1588v2 | 7x7mm BGA |
应用
服务器，AI处理器，网络接口，边缘计算，数据中心
数据手册下载
| Part Number | Package | Description | Download |
| AS21010P | 7x7mm BGA | 10Gbps / 5Gbps / 2.5Gbps / 1Gbps / 100 Mbps |  |
